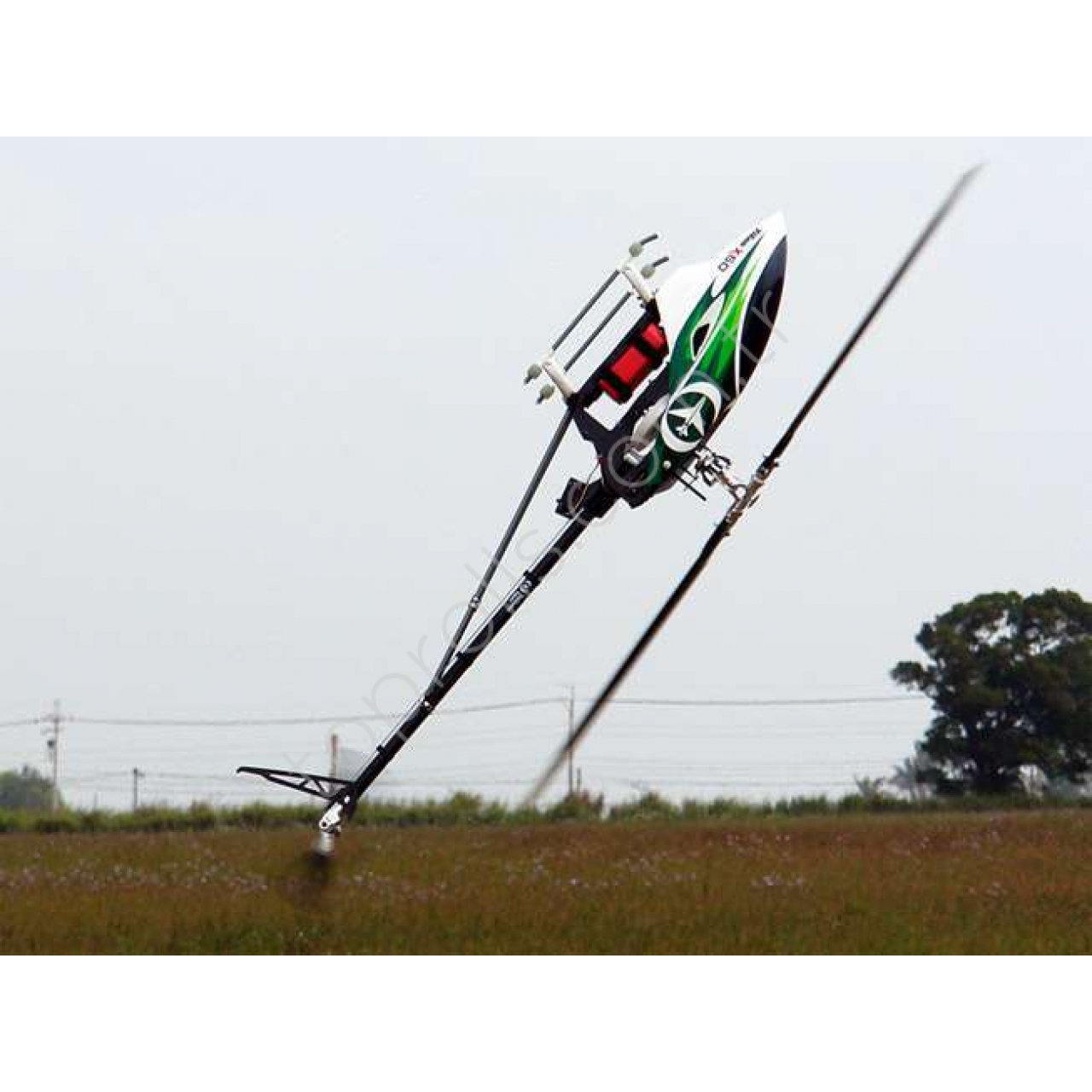

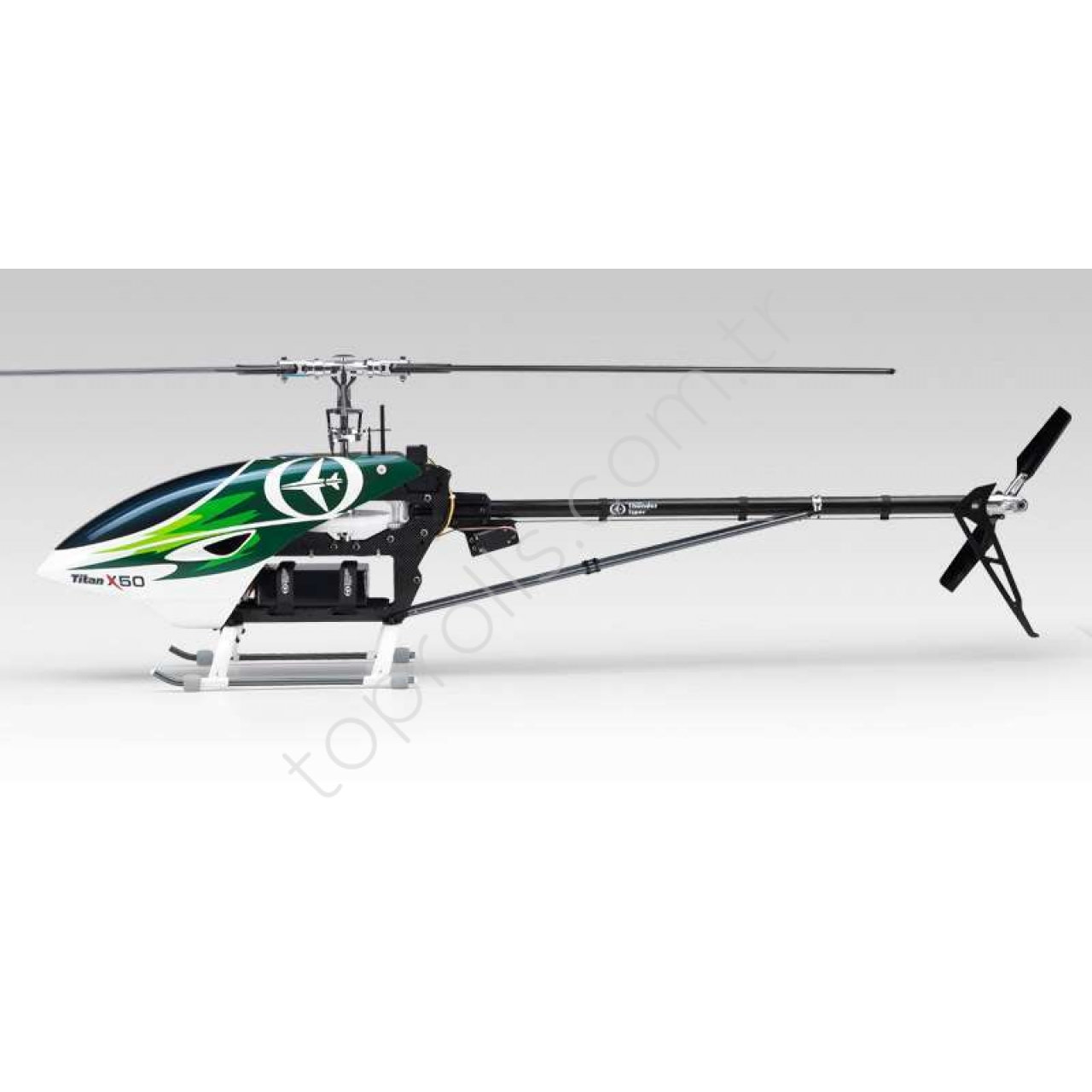

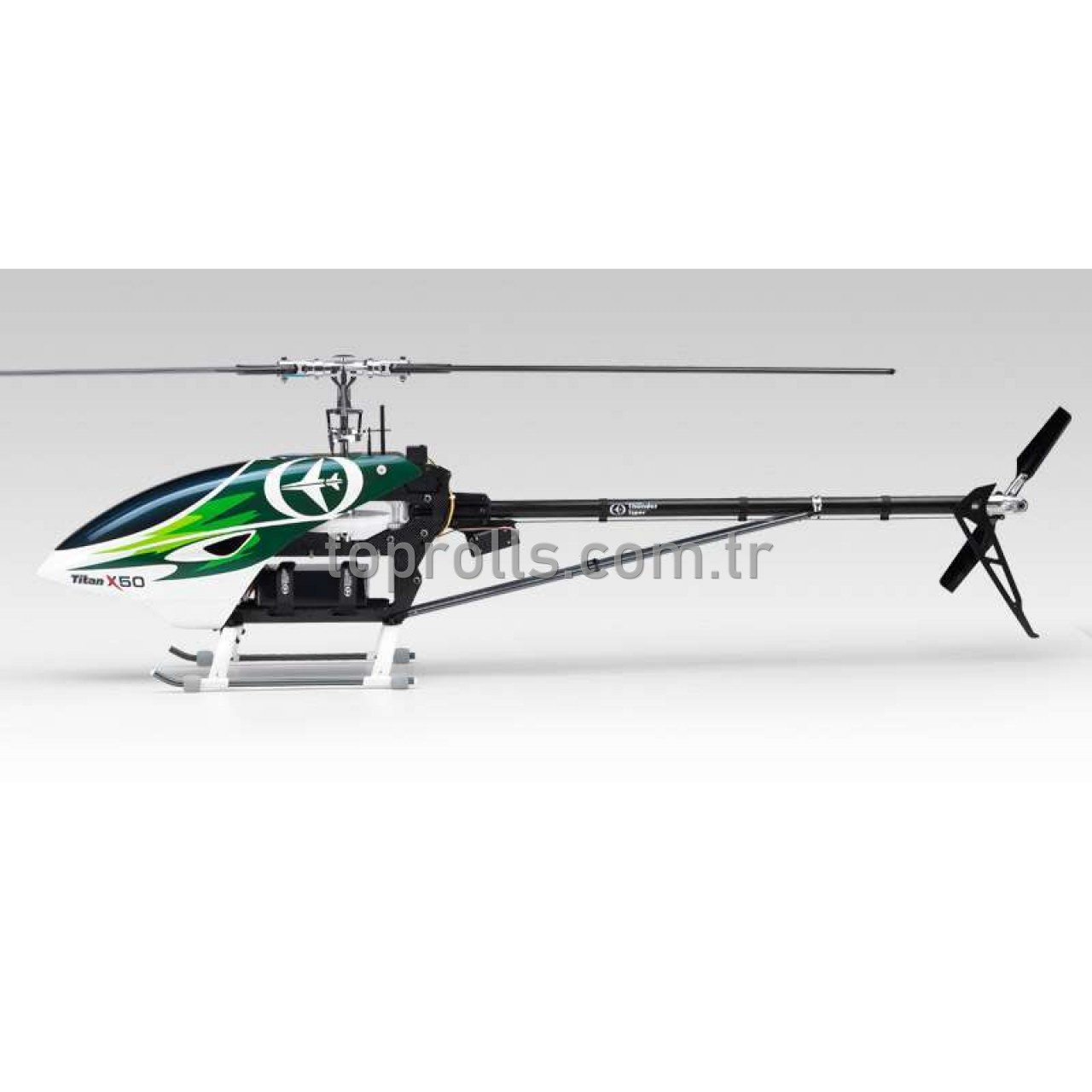

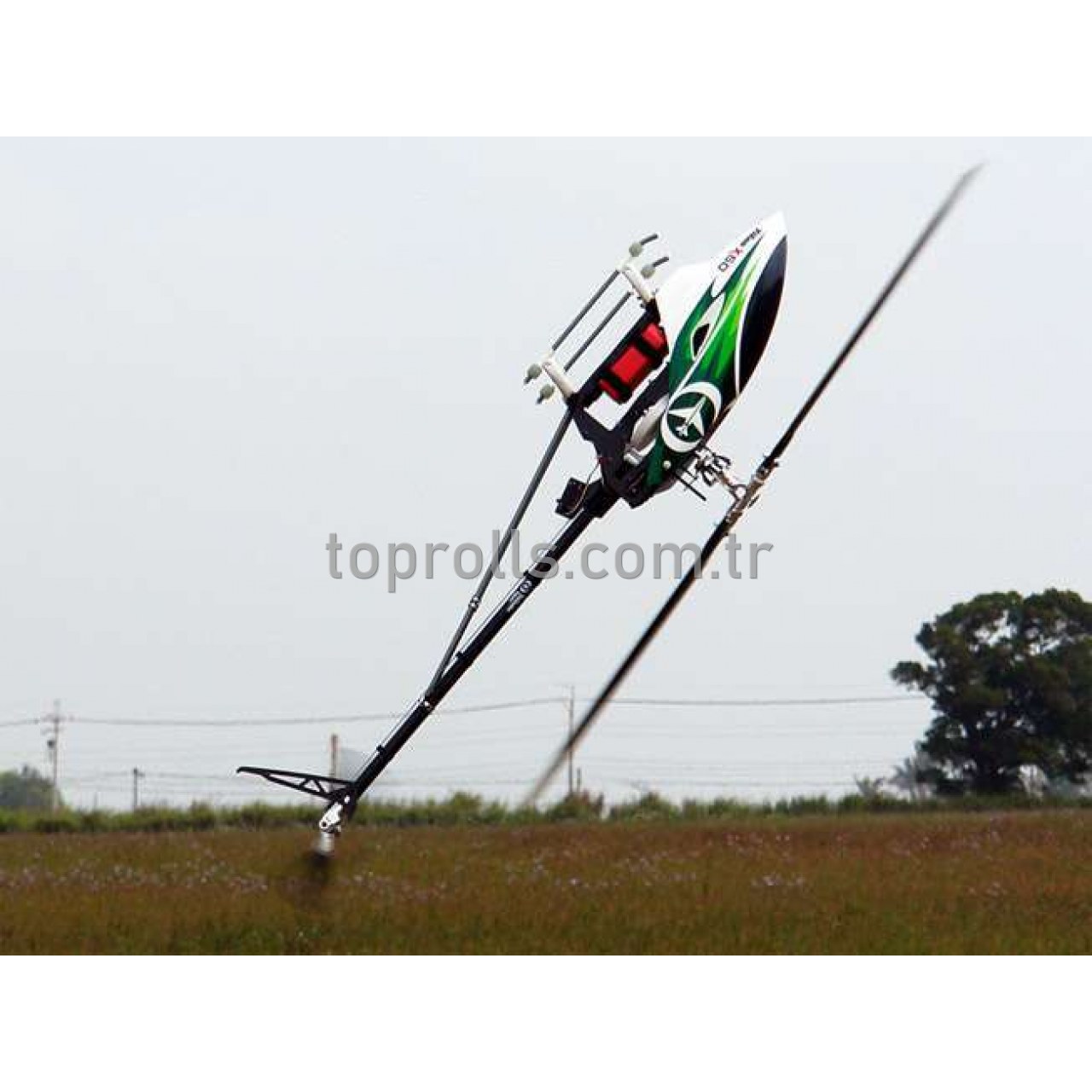

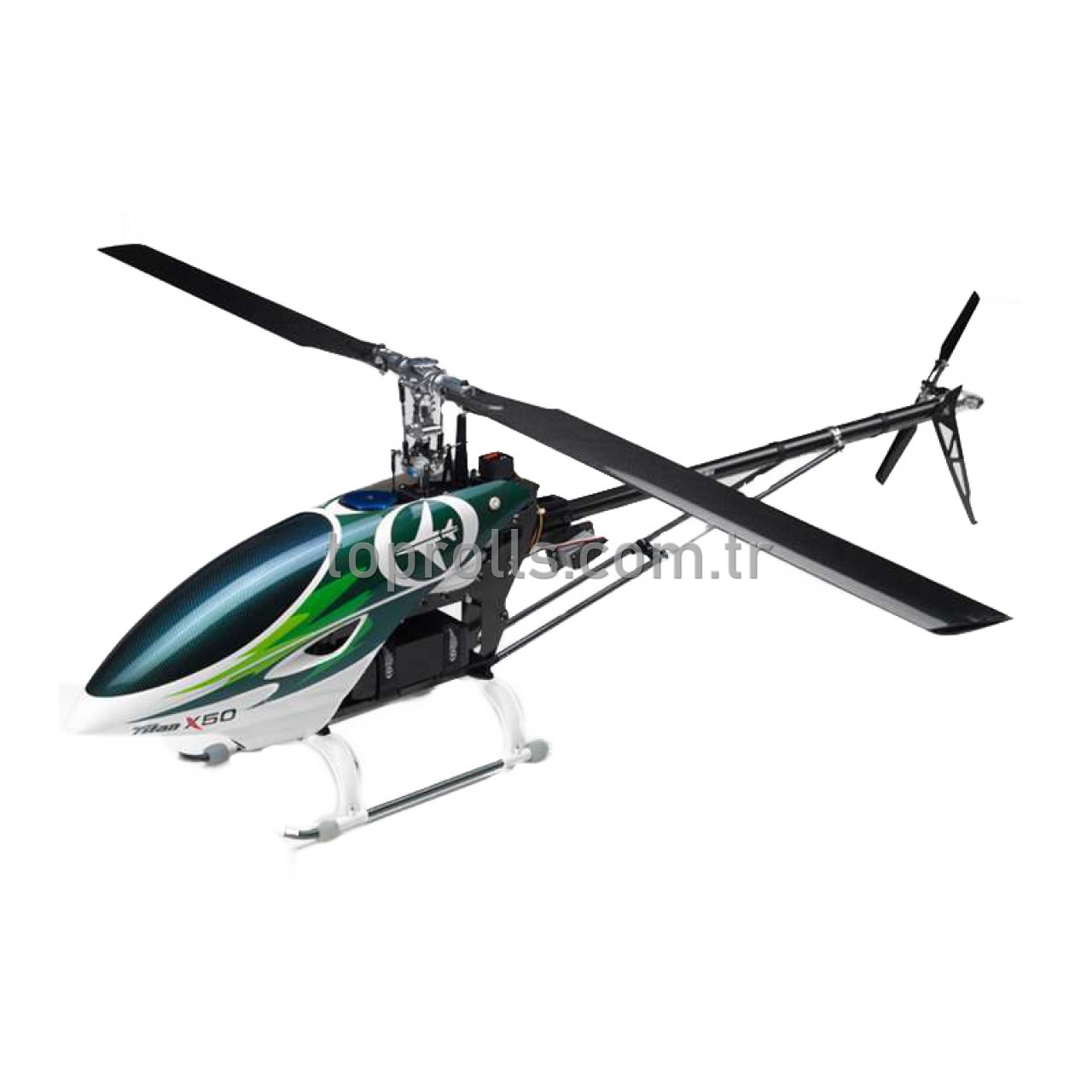

Taksit Oranlarını GösterTITAN X50E FBL Torque Tube Kit Elektrikli RC Helikopter
Thunder Tiger X50EF ULTIMATE 3D eCCPM Tork Tube, Flybarless,
Uzunluk: 1200mm / 47.24 inc.
Genişlik: 200mm / 7.87 inc.
Yükseklik: 400mm / 1.57 inc.
Ana rotor çapı: 1345mm /5.2.95 inc (600mm Ana Paller ile)
Kuyruk rotor çapı: 260mm / 10.24 inc. (95mm Kuyruk Pervanesi ile)
Dişli oranı: 135T / 15T Standart ( Opsiyon 12-14T )
Ful ağırlık: 2700 gr / 5.95 lb.
Gövde Meteryali: Karbon
Gerekli olanlar: 6 kanal kumanda, 5 adet dijital servo, 3-Axisli gyro, 8S - 12S Lipo batarya ve şarj aleti, Brushless motor ve ESC
Kutu İçindekiler:
Helikopter Kiti
600 mm Flybarless Karbon Pal

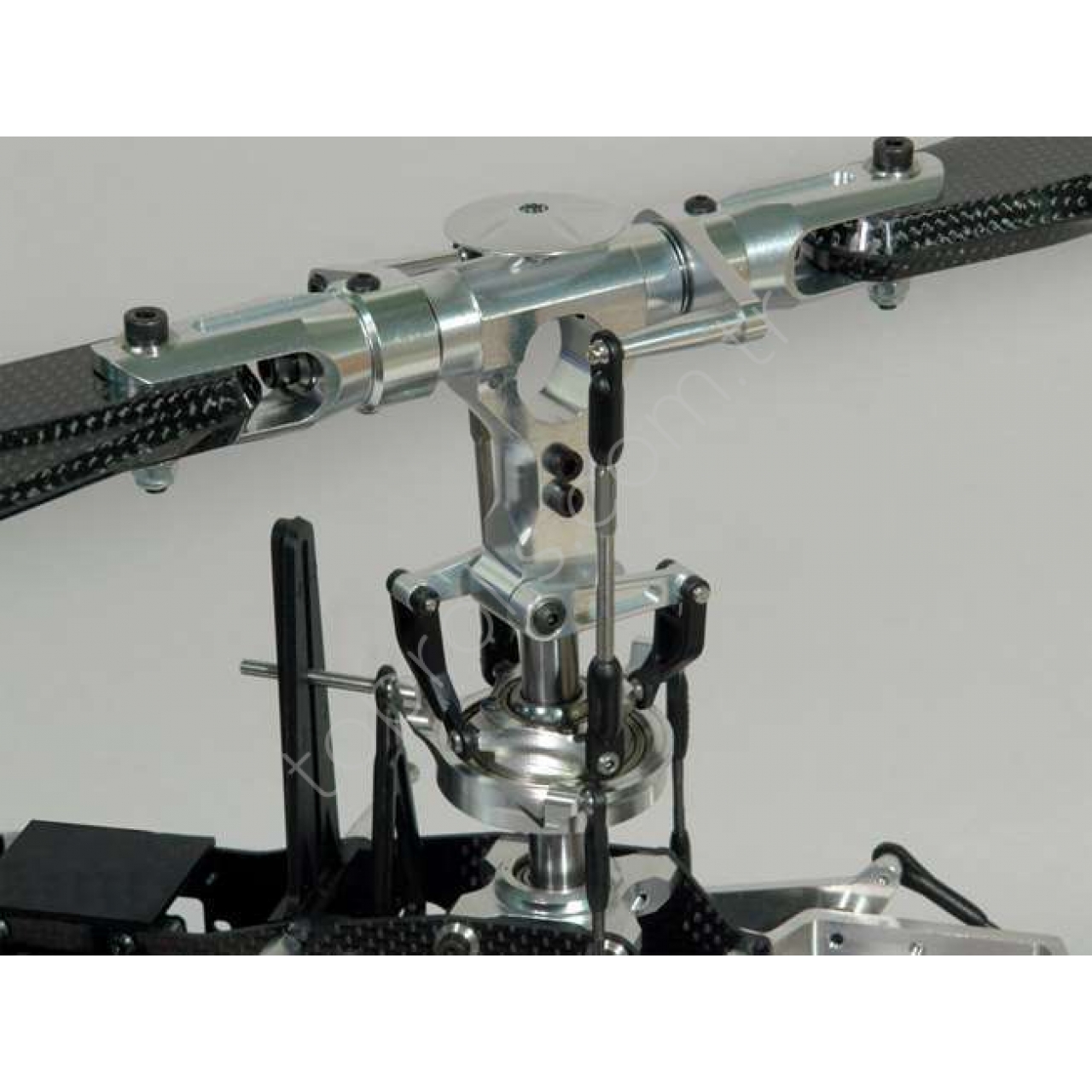

Features- Rotor Head
1.Hardened 10 mm main shaft and 7 mm feathering shaft
2.Assembled 3-piece metal main rotor grip set for easy maintenance
Unique Features- Flybarless version
1.Lightweight, rigid one-piece metal main rotor hub
2.Enlarged titanium rod and ball linkage for rigidity and extreme pitch response
3.Longer metal control arms for high control resolution
Features- Main Frame
1.Top mounted motor for better CG and efficient heat dissipation
2.Motor mount for both M4x30mm and M3x25/ 30mm bolt position
3.Accepts wide range of motor sizes. Maximum diameter 52 mm
4.Enlarged 135T vented main gear (Mod 0.8)
5.Adjustable gear ratio to accommodate different motor KV.
(15T pinion included for 6 mm motor shaft)
6.One-piece carbon frame with 30 mm slim profile
7.Extended electronics tray for installation versatility.
8. All metal control arms assembly eliminate the need for upgrades
9. 120-degree CCPM control system, option 140-degree convertibility
10. Integrated reinforced ribs and control arms base around the motor for strength
11. Adjustable motor mount and pinion bearing block
12. Enlarged room for Lipo battery pack, applicable to a 8~12-cell pack
13. High-quality color shifting preprinted canopy
14. Lightweight and durable landing skid set
15.Torque-tube drive system for crisp rudder response and 100% power transfer
16.Dual Radial, single thrust bearings and metal tail grips with 95 mm blades
17.Lightweight, metal tail boom support bracket and machined tail case
18.Compound carbon/aluminum tail boom to reduce vibration
19.All metal, high precision and heavy duty tail rotor system
20.Easy to install trail rotor rod guide
